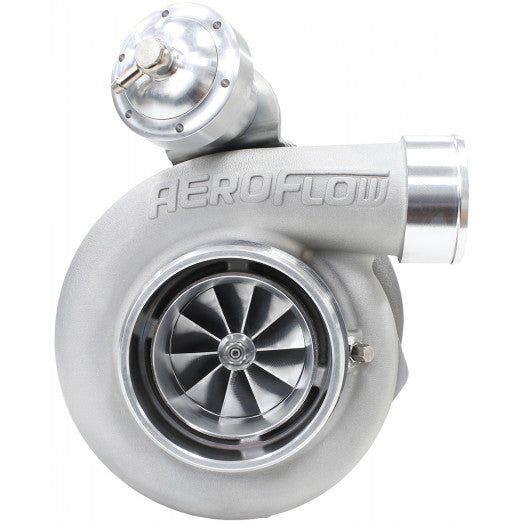

Aeroflow BOOSTED 6762 1.15 T3 XR6 BA BF 5 BOLT OUTLET GTX3584 NATURAL Aeroflow - AF 8005-3018 Aeroflow BOOSTED 6762 1.15 T3 XR6 BA BF 5 BOLT OUTLET GTX3584 NATURAL Aeroflow - AF 8005-3018 Aeroflow Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures. Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperaturesto a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.SpecificationsBOOSTED 6762 1.15 XR6 Turbocharger SpecificationsRecommended horsepower rating: 550-1000HPRecommended engine displacement: 2L to 5.5L Dual ceramic ball bearing Billet aluminium compressor wheel Ported shroud compressor housing cover Speed sensor port included in compressor cover (sold separately, AF8050-1010) Standard XR6 turbine outlet flange Turbo oil line feed sold separately (Ford XR6 BA-BF use AF30-1000, Ford XR6 FG use AF30-1005) Recommended turbo drain adapter AF463-01 or AF463-05 Dual internal wastegate brackets included to suit both BA-BF and FG models Will suit standard coolant lines or M14x1.5mm coolant fittings sold separately Turbine inlet gasket sold separately CompressorInducer: 67mmExducer: 84mmExtended Tip: 87.5mmA/R: 0.72TurbineInducer: 68mmExducer: 62.3mmA/R: 1.15Compressor Inlet: 4" Slip fitCompressor Outlet: 2.5" Slip fitTurbine Inlet Flange: T3Turbine Outlet Flange: XR6 5-BoltWastegate: 36mm internal wastegate with 9psi actuatorIMPORTANT NOTES FOR BUYERS:*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS

Aeroflow BOOSTED 6762 1.15 T3 XR6 BA BF 5 BOLT OUTLET GTX3584 NATURAL Aeroflow - AF 8005-3018

Code: AF8005-3018
$2,564.10 $2,307.69
In Stock

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures. Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperaturesto a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.


Specifications

BOOSTED 6762 1.15 XR6 Turbocharger Specifications

Recommended horsepower rating: 550-1000HP
Recommended engine displacement: 2L to 5.5L

  • Dual ceramic ball bearing
  • Billet aluminium compressor wheel
  • Ported shroud compressor housing cover
  • Speed sensor port included in compressor cover (sold separately, AF8050-1010)
  • Standard XR6 turbine outlet flange
  • Turbo oil line feed sold separately (Ford XR6 BA-BF use AF30-1000, Ford XR6 FG use AF30-1005)
  • Recommended turbo drain adapter AF463-01 or AF463-05
  • Dual internal wastegate brackets included to suit both BA-BF and FG models
  • Will suit standard coolant lines or M14x1.5mm coolant fittings sold separately
  • Turbine inlet gasket sold separately

Compressor
Inducer: 67mm
Exducer: 84mm
Extended Tip: 87.5mm
A/R: 0.72

Turbine
Inducer: 68mm
Exducer: 62.3mm
A/R: 1.15

Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Inlet Flange: T3
Turbine Outlet Flange: XR6 5-Bolt
Wastegate: 36mm internal wastegate with 9psi actuator
IMPORTANT NOTES FOR BUYERS:

*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND

*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME

*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS

*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
