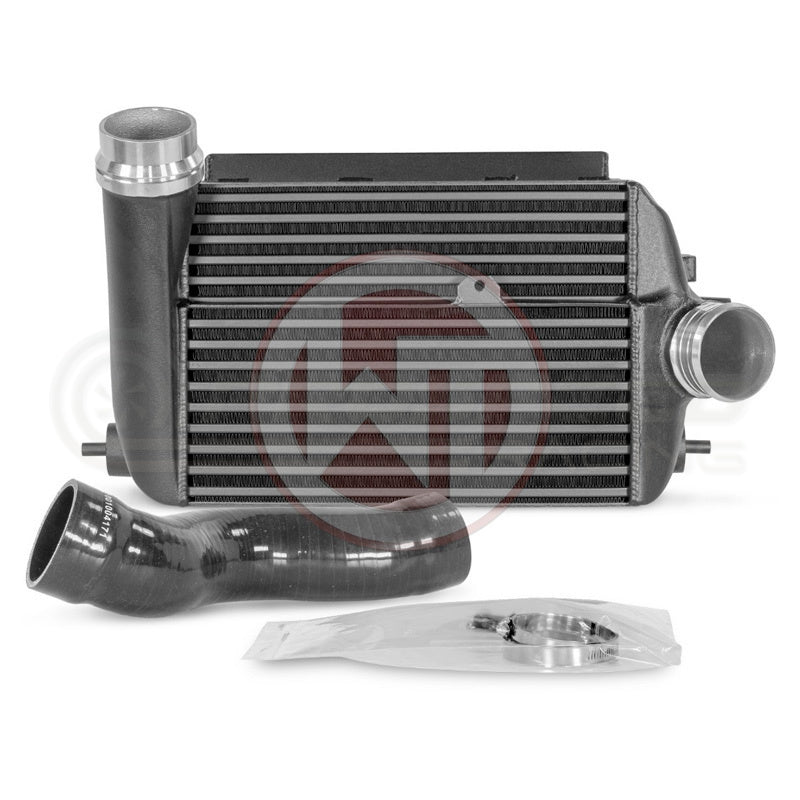

Wagner Tuning Competition Intercooler Kit - Renault Megane RS Mk4
COMPETITION INTERCOOLER KIT Renault Megane 4 R.S.
The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 315 mm x 227 [142] mm x 165 [150] mm [stepped] / 12,4 Inch x 8,9 [5,6] Inch x 6,4 [5,9] Inch [stepped], which was developed especially for the requirements of the Renault Megane 4RS. This high-performance core offers an 6 % larger frontal surface and 47 % more core volume compared to the stock intercooler.
The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Inlet diameter: Ø65 mm/2,56 Inch ; Outlet diameter Ø67,2 mm/2,64 Inch (stock click-connection)
Dimensions stock intercooler:
- 290 mm x 233 mm x 115 mm / 11,4 Inch x 9,2 Inch x 4,5 Inch
- V = 7,77 L / 474 Inch³
- A = 675 cm² / 104,6 Inch²
Dimensions WAGNERTUNING intercooler:
- 315 mm x 227 [142] mm x 165 [150] mm [stepped] / 12,4 Inch x 8,9 [5,6] Inch x 6,4 [5,9] Inch [stepped]
- V = 11,4 L / 696 Inch³
- A = 715 cm²/ 110,8 Inch²
Kit Includes:
- 1 intercooler
- 1 silicone hose (black)
- 1 mounting material
- 1 installation instruction
Vehicle Fitment:
- 2018+ Renault Megane RS Mk4 BFB
Vehicle Specific Information
Specifications
Fitment
- 2018 Renault Megane RS Mk4 BFB
- 2019 Renault Megane RS Mk4 BFB
- 2020 Renault Megane RS Mk4 BFB
- 2021 Renault Megane RS Mk4 BFB
COMPETITION INTERCOOLER KIT Renault Megane 4 R.S.
The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 315 mm x 227 [142] mm x 165 [150] mm [stepped] / 12,4 Inch x 8,9 [5,6] Inch x 6,4 [5,9] Inch [stepped], which was developed especially for the requirements of the Renault Megane 4RS. This high-performance core offers an 6 % larger frontal surface and 47 % more core volume compared to the stock intercooler.
The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Inlet diameter: Ø65 mm/2,56 Inch ; Outlet diameter Ø67,2 mm/2,64 Inch (stock click-connection)
Dimensions stock intercooler:
- 290 mm x 233 mm x 115 mm / 11,4 Inch x 9,2 Inch x 4,5 Inch
- V = 7,77 L / 474 Inch³
- A = 675 cm² / 104,6 Inch²
Dimensions WAGNERTUNING intercooler:
- 315 mm x 227 [142] mm x 165 [150] mm [stepped] / 12,4 Inch x 8,9 [5,6] Inch x 6,4 [5,9] Inch [stepped]
- V = 11,4 L / 696 Inch³
- A = 715 cm²/ 110,8 Inch²
Kit Includes:
- 1 intercooler
- 1 silicone hose (black)
- 1 mounting material
- 1 installation instruction
Vehicle Fitment:
- 2018+ Renault Megane RS Mk4 BFB
Vehicle Specific Information
Specifications
Fitment
- 2018 Renault Megane RS Mk4 BFB
- 2019 Renault Megane RS Mk4 BFB
- 2020 Renault Megane RS Mk4 BFB
- 2021 Renault Megane RS Mk4 BFB
