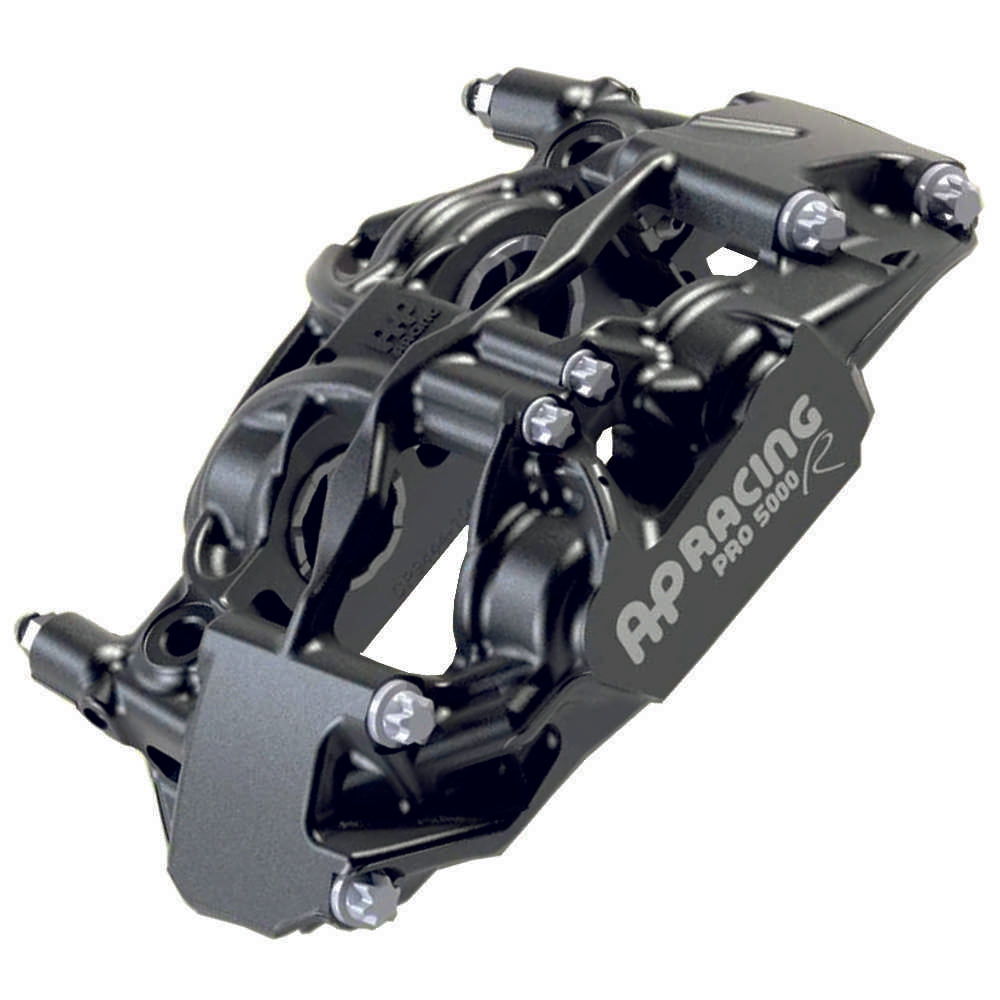

AP Racing Race Front PAIR Black 4 Piston Performance Brake Calipers PRO 5000 R CP9444-2/3/4/5S0L - Front - 45.9cm² Piston Area - Suits 13" Wheel
TypicalApplications:
- 13" Wheel, single seater.
- Budget, general competition use.
Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Grey anodised surface finish.
- Radial mount, 152.0mm x 44.0mm centres.
- Suits Ø280mm x 25.4 / 22.0 / 21.0 or 18.0mm thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- Stainless Steel wear plates.
- Smaller bore version for rear applications available - CP9445 family.
Part Numbers:
To suit discs Ø280.0mm x 25.4 - 22.0mm
- RH = CP9444-2S0L.
- LH = CP9444-3S0L
To suit discs Ø280.0mm x 21.0 - 18.0mm
- RH = CP9444-4S0L.
- LH = CP9444-5S0L
Specifications
| Brake Pad Information | CP3215D42 |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø34.9 x 2 - Ø41.3 x 2 |
| Piston Area - cm² | 45.9 |
| Disc Diameter - mm | 280.0 |
| Disc Thickness - mm | - CP9444-2/3 = 25.4 to 22.0 - CP9444/5 = 21.0 to 18.0 |
| Weight - No pads - Kg | 1.86 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 152.0 |
| Mounting Offset - mm | - CP9444-2/3 = 40.0 - CP9444-4/5 = 38.0 |
| Mounting Hole Ø - mm | 10.0 |
| PL Dimension - mm | 57.0 |
| Bleed screw tightening torque - Nm | 17 |
| SPARE PARTS | |
| Pistons | - Ø34.9 = CP9444-110 - Ø41.3 = CP9444-111 |
| Seal Repair Kit | CP8518-GK |
| Wear Plates | - RH = CP9444-112 - LH = CP9444-113 |
| Bleed Screw Kit | CP3880-1 |
TypicalApplications:
- 13" Wheel, single seater.
- Budget, general competition use.
Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Grey anodised surface finish.
- Radial mount, 152.0mm x 44.0mm centres.
- Suits Ø280mm x 25.4 / 22.0 / 21.0 or 18.0mm thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- Stainless Steel wear plates.
- Smaller bore version for rear applications available - CP9445 family.
Part Numbers:
To suit discs Ø280.0mm x 25.4 - 22.0mm
- RH = CP9444-2S0L.
- LH = CP9444-3S0L
To suit discs Ø280.0mm x 21.0 - 18.0mm
- RH = CP9444-4S0L.
- LH = CP9444-5S0L
Specifications
| Brake Pad Information | CP3215D42 |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø34.9 x 2 - Ø41.3 x 2 |
| Piston Area - cm² | 45.9 |
| Disc Diameter - mm | 280.0 |
| Disc Thickness - mm | - CP9444-2/3 = 25.4 to 22.0 - CP9444/5 = 21.0 to 18.0 |
| Weight - No pads - Kg | 1.86 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 152.0 |
| Mounting Offset - mm | - CP9444-2/3 = 40.0 - CP9444-4/5 = 38.0 |
| Mounting Hole Ø - mm | 10.0 |
| PL Dimension - mm | 57.0 |
| Bleed screw tightening torque - Nm | 17 |
| SPARE PARTS | |
| Pistons | - Ø34.9 = CP9444-110 - Ø41.3 = CP9444-111 |
| Seal Repair Kit | CP8518-GK |
| Wear Plates | - RH = CP9444-112 - LH = CP9444-113 |
| Bleed Screw Kit | CP3880-1 |
IMPORTANT NOTES FOR BUYERS:
*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND
*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME
*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS
*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
