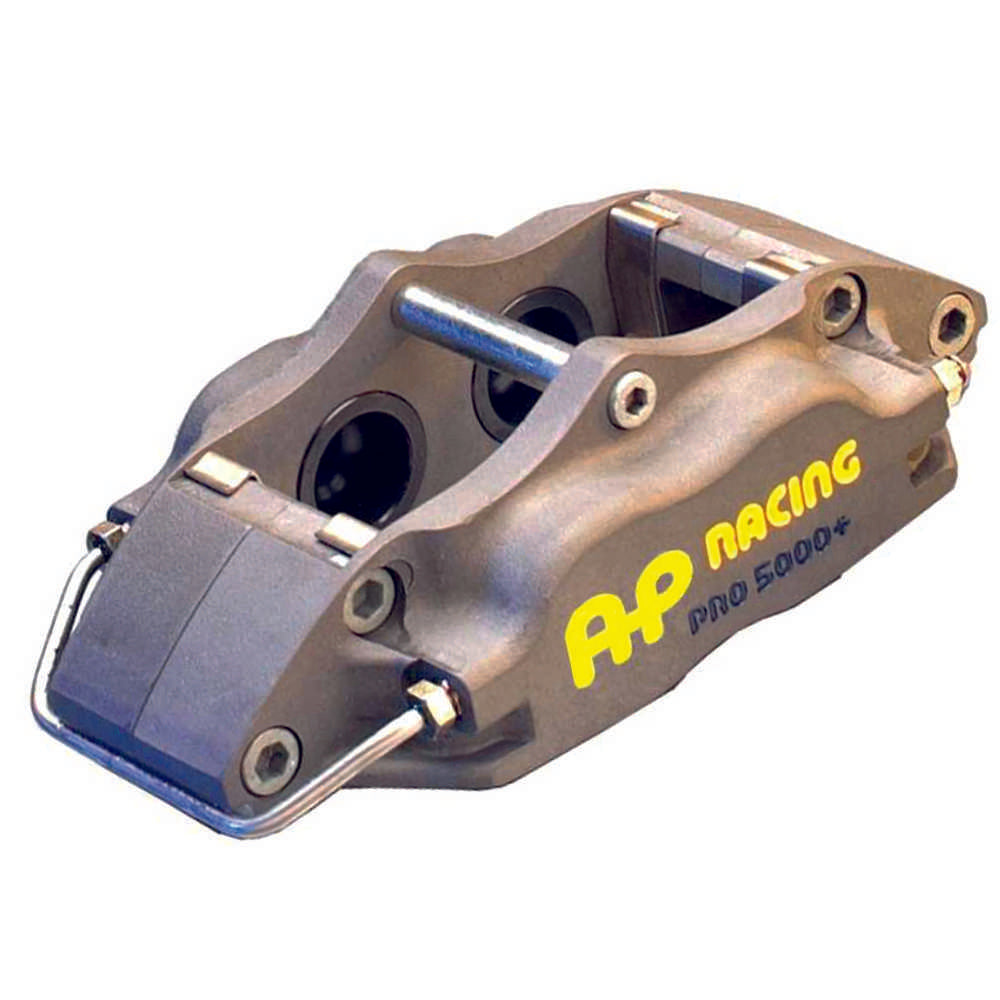

AP Racing Race Front PAIR Gray 4 Piston Performance Brake Calipers PRO 5000+ CP5040-10/11/12/13 - 130mm Centres
AP Racing Race Front PAIR Gray 4 Piston Performance Brake Calipers PRO 5000+ CP5040-10/11/12/13 - 130mm Centres
AP Racing
Applications:- Budget general use caliper. - Single make race series. Features: - Radial mount, 130.0mm x 43.0mm centres. - Cast Aluminium alloy body. - Suits Ø295 or 280.0mm x 25.4mm disc. - Staggered equal bores. - Available with Aluminium alloy or Stainless Steel Pistons. - High temperature seals. - 4lb Anti-knockback springs fitted. - Stainless Steel wear plates. - 16mm thick pad.Part Numbers: For calipers with Aluminium pistons- RHT = CP5040-10S4. / LHT = CP5040-11S4. - RHL = CP5040-12S4. / LHL = CP5040-13S4.For calipers with S/Steel pistons- RHT = CP5040-10S4L. / LHT = CP5040-11S4L. - RHL = CP5040-12S4L. / LHL = CP5040-13S4L.Specifications
Brake Pad Information
CP3345D44- Pad Area = 43.4cm²- Pad Depth = 44.1mm- Thickness = 16.0mm
TECHNICAL SPECIFICATIONS
Piston Sizes - mm
Ø38.1 x 4
Piston Area - cm²
45.6
Weight (no pads) - Kg
1.9
Hydraulic Threads
M10x1.0
Mounting Type
Radial
Mounting Centres - mm
130.0
Mounting Offset - mm
43.2
Mounting Hole Ø - mm
10.2
‘PL’ Dimension - mm
53.0
Bleed Screw Tightening Torque
17Nm
CALIPER SPARE PARTS
Pistons
- Aluminium = CP3215-113.- S/Steel = CP5560-110.
Seal Repair Kits
CP4518-JJ
Stainless Steel Piston Kit
CP5040-42
Pad Retainer / Part Number
Bolt - CP5100-116 x 1
Retainer Bolt Part Number
CP5100-125
Wear Plates
CP5100-210 x 2CP5100-211 x 2
Anti-Knockback Spring Kit
CP6518-4LBLL
Bleed Screw
CP3720-173
Fluid Pipe
CP5000-54
BRAKE DISC INFORMATION
Disc Details
- Ø295 x 25.4 = CP5000-510/-511CG8- Ø280 x 25.4 = CP5000-312/-313CG8
IMPORTANT NOTES FOR BUYERS:*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
![AP Racing Race Front PAIR Gray 4 Piston Performance Brake Calipers PRO 5000+ CP5040-10/11/12/13 - 130mm Centres]()
![AP Racing Race Front PAIR Gray 4 Piston Performance Brake Calipers PRO 5000+ CP5040-10/11/12/13 - 130mm Centres]()
![AP Racing Race Front PAIR Gray 4 Piston Performance Brake Calipers PRO 5000+ CP5040-10/11/12/13 - 130mm Centres]()
![AP RACING CALIPER BBK Front KIT(red)AP-CP 9200 FOR MINI R53 17 inch and up]()
![AP RACING CALIPER BBK Front KIT(red)AP-CP 9200 FOR MINI R53 17 inch and up]()
![AP RACING BIG BRAKE KIT -BBK CP9660 CALIPER 6 POT PRO 5000R FOR BMW M2]()
AP Racing Race Front PAIR Gray 4 Piston Performance Brake Calipers PRO 5000+ CP5040-10/11/12/13 - 130mm Centres
Applications:
- Budget general use caliper.
- Single make race series.
Features:
- Radial mount, 130.0mm x 43.0mm centres.
- Cast Aluminium alloy body.
- Suits Ø295 or 280.0mm x 25.4mm disc.
- Staggered equal bores.
- Available with Aluminium alloy or Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
- 16mm thick pad.
Part Numbers:
For calipers with Aluminium pistons
- RHT = CP5040-10S4. / LHT = CP5040-11S4.
- RHL = CP5040-12S4. / LHL = CP5040-13S4.
For calipers with S/Steel pistons
- RHT = CP5040-10S4L. / LHT = CP5040-11S4L.
- RHL = CP5040-12S4L. / LHL = CP5040-13S4L.
- Budget general use caliper.
- Single make race series.
Features:
- Radial mount, 130.0mm x 43.0mm centres.
- Cast Aluminium alloy body.
- Suits Ø295 or 280.0mm x 25.4mm disc.
- Staggered equal bores.
- Available with Aluminium alloy or Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
- 16mm thick pad.
Part Numbers:
For calipers with Aluminium pistons
- RHT = CP5040-10S4. / LHT = CP5040-11S4.
- RHL = CP5040-12S4. / LHL = CP5040-13S4.
For calipers with S/Steel pistons
- RHT = CP5040-10S4L. / LHT = CP5040-11S4L.
- RHL = CP5040-12S4L. / LHL = CP5040-13S4L.
Specifications
| Brake Pad Information | CP3345D44 |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | Ø38.1 x 4 |
| Piston Area - cm² | 45.6 |
| Weight (no pads) - Kg | 1.9 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 130.0 |
| Mounting Offset - mm | 43.2 |
| Mounting Hole Ø - mm | 10.2 |
| ‘PL’ Dimension - mm | 53.0 |
| Bleed Screw Tightening Torque | 17Nm |
| CALIPER SPARE PARTS | |
| Pistons | - Aluminium = CP3215-113. - S/Steel = CP5560-110. |
| Seal Repair Kits | CP4518-JJ |
| Stainless Steel Piston Kit | CP5040-42 |
| Pad Retainer / Part Number | Bolt - CP5100-116 x 1 |
| Retainer Bolt Part Number | CP5100-125 |
| Wear Plates | CP5100-210 x 2 CP5100-211 x 2 |
| Anti-Knockback Spring Kit | CP6518-4LBLL |
| Bleed Screw | CP3720-173 |
| Fluid Pipe | CP5000-54 |
| BRAKE DISC INFORMATION | |
| Disc Details | - Ø295 x 25.4 = CP5000-510/-511CG8 - Ø280 x 25.4 = CP5000-312/-313CG8 |
