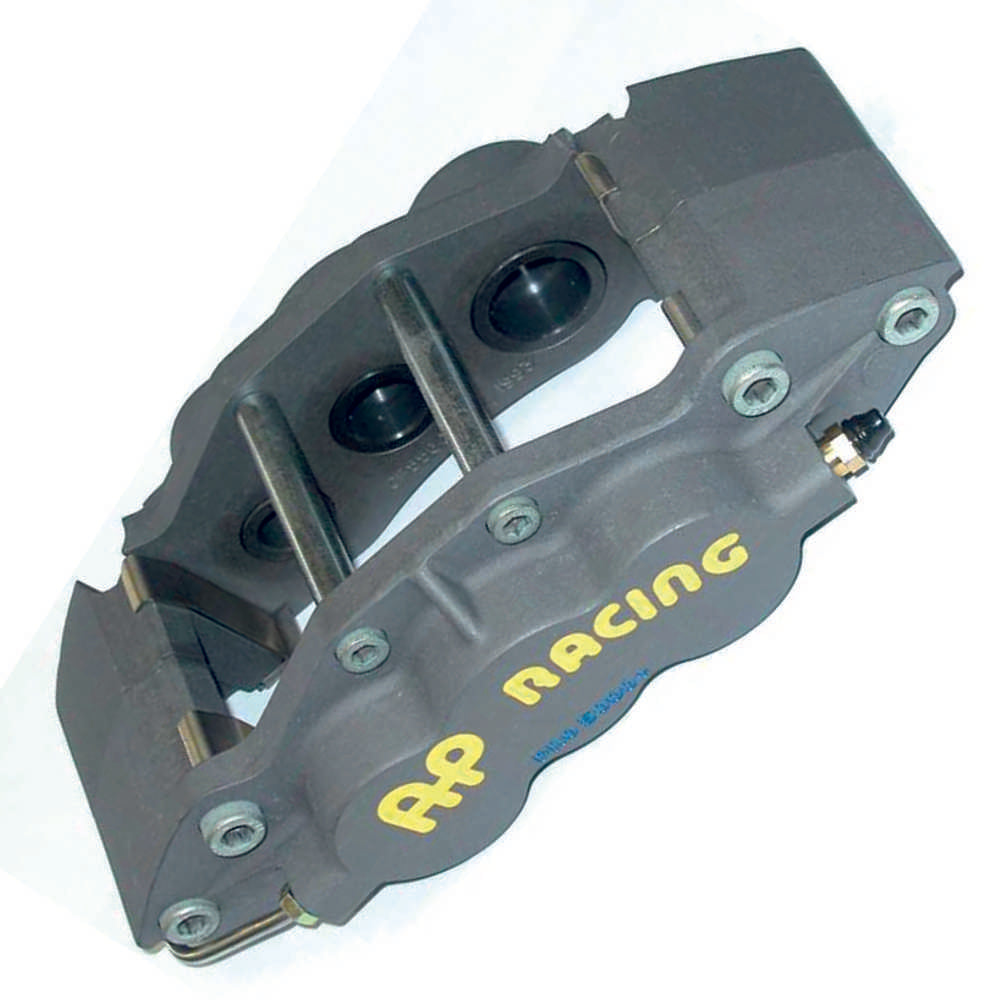

AP Racing Race Front PAIR Gray 6 Piston Performance Brake Calipers PRO 5000+ CP5060-10/11/12/13 - 180mm Centres - 32mm Thick Discs
AP Racing Race Front PAIR Gray 6 Piston Performance Brake Calipers PRO 5000+ CP5060-10/11/12/13 - 180mm Centres - 32mm Thick Discs
AP Racing
Applications:- Budget general use caliper. - Single make race series. Features: - Radial mount, 180.0mm x 44.0mm centres. - Cast Aluminium alloy body. - Suits Ø378.0, 366.0 or 356.0mm x 32mm disc. - Available with Aluminium alloy or Stainless Steel Pistons. - High temperature seals. - 4lb Anti-knockback springs fitted. - Stainless Steel wear plates. - 18mm thick pad.Part Numbers: For calipers with Aluminium pistons- RHT = CP5060-10S4. / LHT = CP5060-11S4. - RHL = CP5060-12S4. / LHL = CP5060-13S4.For calipers with S/Steel pistons- RHT = CP5060-10S4L. / LHT = CP5060-11SL. - RHL = CP5060-12S4L. / LHL = CP5060-13S4L.Specifications
Brake Pad Information
CP3894D54- Pad Area = 73.5cm²- Pad Depth = 54.0mm- Thickness = 18.0mm
TECHNICAL SPECIFICATIONS
Piston Sizes - mm
- Ø27.0 x 2 / - Ø31.8 x 2- Ø38.1 x 2
Piston Area - cm²
50.1
Weight (no pads) - Kg
2.8
Hydraulic Threads
M10x1.0
Mounting Type
Radial
Mounting Centres - mm
180.0
Mounting Offset - mm
44.0
Mounting Hole Ø - mm
12.2
‘PL’ Dimension - mm
63.5
Bleed Screw Tightening Torque
17Nm
CALIPER SPARE PARTS
Pistons
- Ø27.0Aluminium = CP4910-156.S/Steel = CP5560-108.- Ø31.8Aluminium = CP4910-155.S/Steel = CP5560-109.- Ø38.1Aluminium = CP4910-154.S/Steel = CP5560-110.
Stainless Steel Piston kit
CP5060-14
Seal Repair kit
CP4518-CEJ
Pad Retainer Type / Part No.
Bolt x 2 / CP5555-126
Retainer Bolt Part No.
CP3596-112 x 2
Wear Plates
CP5555-120 x 4
Anti-Knockback Spring Kit
CP6518-4LBSSL
Bleed Screw
CP3880-1
Fluid Pipe
CP5560-6
BRAKE DISC INFORMATION
Disc Details
- Ø356 x 32 = CP5000-218/-219CG8- Ø366 x 32 = CP3718-1088/-1089CG8- Ø378 x 32 = CP5772-1030/-1031CG8
IMPORTANT NOTES FOR BUYERS:*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
![AP Racing Race Front PAIR Gray 6 Piston Performance Brake Calipers PRO 5000+ CP5060-10/11/12/13 - 180mm Centres - 32mm Thick Discs]()
![AP Racing Race Front PAIR Gray 6 Piston Performance Brake Calipers PRO 5000+ CP5060-10/11/12/13 - 180mm Centres - 32mm Thick Discs]()
![AP Racing Race Front PAIR Gray 6 Piston Performance Brake Calipers PRO 5000+ CP5060-10/11/12/13 - 180mm Centres - 32mm Thick Discs]()
![AP RACING CALIPER BBK Front KIT(red)AP-CP 9200 FOR MINI R53 17 inch and up]()
![AP RACING CALIPER BBK Front KIT(red)AP-CP 9200 FOR MINI R53 17 inch and up]()
![AP RACING BIG BRAKE KIT -BBK CP9660 CALIPER 6 POT PRO 5000R FOR BMW M2]()
AP Racing Race Front PAIR Gray 6 Piston Performance Brake Calipers PRO 5000+ CP5060-10/11/12/13 - 180mm Centres - 32mm Thick Discs
Applications:
- Budget general use caliper.
- Single make race series.
Features:
- Radial mount, 180.0mm x 44.0mm centres.
- Cast Aluminium alloy body.
- Suits Ø378.0, 366.0 or 356.0mm x 32mm disc.
- Available with Aluminium alloy or Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
- 18mm thick pad.
Part Numbers:
For calipers with Aluminium pistons
- RHT = CP5060-10S4. / LHT = CP5060-11S4.
- RHL = CP5060-12S4. / LHL = CP5060-13S4.
For calipers with S/Steel pistons
- RHT = CP5060-10S4L. / LHT = CP5060-11SL.
- RHL = CP5060-12S4L. / LHL = CP5060-13S4L.
- Budget general use caliper.
- Single make race series.
Features:
- Radial mount, 180.0mm x 44.0mm centres.
- Cast Aluminium alloy body.
- Suits Ø378.0, 366.0 or 356.0mm x 32mm disc.
- Available with Aluminium alloy or Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
- 18mm thick pad.
Part Numbers:
For calipers with Aluminium pistons
- RHT = CP5060-10S4. / LHT = CP5060-11S4.
- RHL = CP5060-12S4. / LHL = CP5060-13S4.
For calipers with S/Steel pistons
- RHT = CP5060-10S4L. / LHT = CP5060-11SL.
- RHL = CP5060-12S4L. / LHL = CP5060-13S4L.
Specifications
| Brake Pad Information | CP3894D54 |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø27.0 x 2 / - Ø31.8 x 2 - Ø38.1 x 2 |
| Piston Area - cm² | 50.1 |
| Weight (no pads) - Kg | 2.8 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 180.0 |
| Mounting Offset - mm | 44.0 |
| Mounting Hole Ø - mm | 12.2 |
| ‘PL’ Dimension - mm | 63.5 |
| Bleed Screw Tightening Torque | 17Nm |
| CALIPER SPARE PARTS | |
| Pistons | - Ø27.0 Aluminium = CP4910-156. S/Steel = CP5560-108. - Ø31.8 Aluminium = CP4910-155. S/Steel = CP5560-109. - Ø38.1 Aluminium = CP4910-154. S/Steel = CP5560-110. |
| Stainless Steel Piston kit | CP5060-14 |
| Seal Repair kit | CP4518-CEJ |
| Pad Retainer Type / Part No. | Bolt x 2 / CP5555-126 |
| Retainer Bolt Part No. | CP3596-112 x 2 |
| Wear Plates | CP5555-120 x 4 |
| Anti-Knockback Spring Kit | CP6518-4LBSSL |
| Bleed Screw | CP3880-1 |
| Fluid Pipe | CP5560-6 |
| BRAKE DISC INFORMATION | |
| Disc Details | - Ø356 x 32 = CP5000-218/-219CG8 - Ø366 x 32 = CP3718-1088/-1089CG8 - Ø378 x 32 = CP5772-1030/-1031CG8 |
IMPORTANT NOTES FOR BUYERS:
*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND
*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME
*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS
*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
Applications:
- Budget general use caliper.
- Single make race series.
Features:
- Radial mount, 180.0mm x 44.0mm centres.
- Cast Aluminium alloy body.
- Suits Ø378.0, 366.0 or 356.0mm x 32mm disc.
- Available with Aluminium alloy or Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
- 18mm thick pad.
Part Numbers:
For calipers with Aluminium pistons
- RHT = CP5060-10S4. / LHT = CP5060-11S4.
- RHL = CP5060-12S4. / LHL = CP5060-13S4.
For calipers with S/Steel pistons
- RHT = CP5060-10S4L. / LHT = CP5060-11SL.
- RHL = CP5060-12S4L. / LHL = CP5060-13S4L.
IMPORTANT NOTES FOR BUYERS:
*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND
*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME
*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS
*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
- Budget general use caliper.
- Single make race series.
Features:
- Radial mount, 180.0mm x 44.0mm centres.
- Cast Aluminium alloy body.
- Suits Ø378.0, 366.0 or 356.0mm x 32mm disc.
- Available with Aluminium alloy or Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
- 18mm thick pad.
Part Numbers:
For calipers with Aluminium pistons
- RHT = CP5060-10S4. / LHT = CP5060-11S4.
- RHL = CP5060-12S4. / LHL = CP5060-13S4.
For calipers with S/Steel pistons
- RHT = CP5060-10S4L. / LHT = CP5060-11SL.
- RHL = CP5060-12S4L. / LHL = CP5060-13S4L.
Specifications
| Brake Pad Information | CP3894D54 |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø27.0 x 2 / - Ø31.8 x 2 - Ø38.1 x 2 |
| Piston Area - cm² | 50.1 |
| Weight (no pads) - Kg | 2.8 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 180.0 |
| Mounting Offset - mm | 44.0 |
| Mounting Hole Ø - mm | 12.2 |
| ‘PL’ Dimension - mm | 63.5 |
| Bleed Screw Tightening Torque | 17Nm |
| CALIPER SPARE PARTS | |
| Pistons | - Ø27.0 Aluminium = CP4910-156. S/Steel = CP5560-108. - Ø31.8 Aluminium = CP4910-155. S/Steel = CP5560-109. - Ø38.1 Aluminium = CP4910-154. S/Steel = CP5560-110. |
| Stainless Steel Piston kit | CP5060-14 |
| Seal Repair kit | CP4518-CEJ |
| Pad Retainer Type / Part No. | Bolt x 2 / CP5555-126 |
| Retainer Bolt Part No. | CP3596-112 x 2 |
| Wear Plates | CP5555-120 x 4 |
| Anti-Knockback Spring Kit | CP6518-4LBSSL |
| Bleed Screw | CP3880-1 |
| Fluid Pipe | CP5560-6 |
| BRAKE DISC INFORMATION | |
| Disc Details | - Ø356 x 32 = CP5000-218/-219CG8 - Ø366 x 32 = CP3718-1088/-1089CG8 - Ø378 x 32 = CP5772-1030/-1031CG8 |
IMPORTANT NOTES FOR BUYERS:
*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND
*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME
*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS
*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
