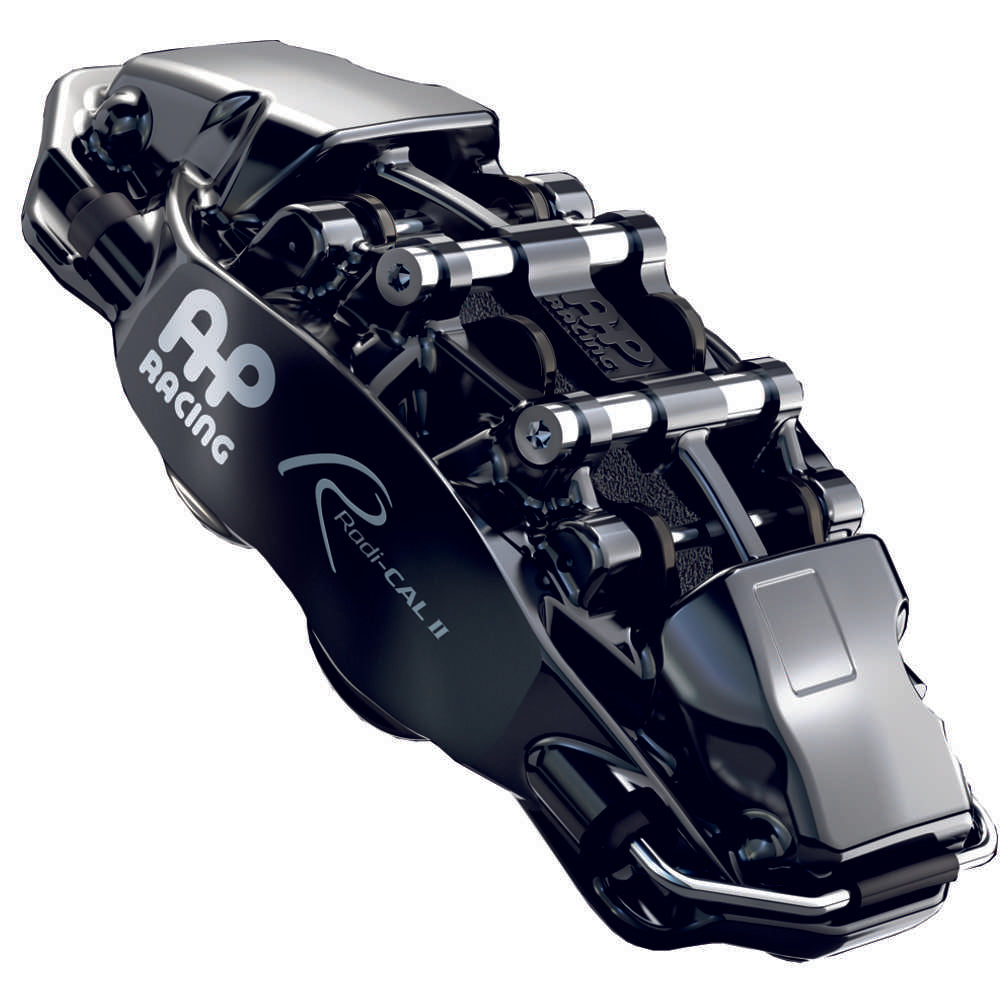

AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 2 CP9542 22.9cm² Piston Area
AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 2 CP9542 22.9cm² Piston Area
AP Racing
Applications:- Performance Road Rear. Features: - Benefits from our latest radical asymmetric design concept. - Radial Mount, 195mm centres. - Suits Ø380mm Max or 356mm Min x 32mm max or 28mm Min thick discs. - Forged two piece Aluminium alloy body. - Aluminium alloy pistons. - Boot type dirt seals fitted. - Advanced Red, Black or Silver anti-corrosion paint finish. - Pad anti-rattle clip fitted.Black Caliper Part Numbers to suit discs Ø380 x 32mm thickness:- RHT = CP9542-2S0BG4 / LHT = CP9542-3S0BG4 - RHL = CP9542-4S0BG4 / LHL = CP9542-5S0BG4 Black Caliper Part Numbers to suit discs Ø380 x 28mm thickness:- RHT = CP9542-6S0BG4 / LHT = CP9542-7S0BG4 - RHL = CP9542-8S0BG4 / LHL = CP9542-9S0BG4Red Caliper Part Numbers:For Red calipers add 'R12' to end of Part Number e.g.r CP9542-2S0R12 Silver Caliper Part Numbers:For Silver calipers add 'S10' to end of Part Number e.g. CP9542-2S0S10Specifications
Brake Pad Information
CP6600D55- Pad Area = 64.6cm²- Pad Depth = 55.0mm- Thickness = 16.75mm
CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm
27.0 x 4
Piston Area - cm²
22.9
Disc Diameter - mm
380.0
Disc Thicknesses
- CP9542-2/3/4/5 = 32.0- CP9542-6/7/8/9 = 28.0
Weight (No Pads) - Kg
3.25
Hydraulic Threads
M10x1.0
Mounting Type
Radial
Mounting Centres - mm
195.0
Mounting Offset - mm
- CP9542-2/3/4/5 = 36.0- CP9542-6/7/8/9 = 34.0
Mounting Hole Ø - mm
12.1
PL Dimension - mm
55.0
Bleed Screw Tightening Torque - Nm
17
CALIPER SPARES
Pistons
Ø27.0mm x 4 = CP7555-106
Seal Repair Kits
CP4527-CC
Pad Retainer and Bolt
CP9541-2/3/4/5 Caliper - CP9560-104 x 4 & CP3596-112ST x 2CP9541-6/7/8/9 Caliper - CP9560-104 x 4 & CP3796--121ST
Pad Retainining Pin
CP9542-2/3/4/5 Caliper - CP7555-182 x 2CP9542-6/7/8/9 Caliper - CP8335-116 x 2
Bleed Screw Kits
CP3880-1
Pad Anti-Rattle Clip
CP9542-2/3/4/5 Caliper - CP9540-107CP9542-6/7/8/9 Caliper - CP9540-108
IMPORTANT NOTES FOR BUYERS:*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
![AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 2 CP9542 22.9cm² Piston Area]()
![AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 2 CP9542 22.9cm² Piston Area]()
![AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 2 CP9542 22.9cm² Piston Area]()
![AP RACING CALIPER BBK Front KIT(red)AP-CP 9200 FOR MINI R53 17 inch and up]()
![AP RACING CALIPER BBK Front KIT(red)AP-CP 9200 FOR MINI R53 17 inch and up]()
![AP RACING BIG BRAKE KIT -BBK CP9660 CALIPER 6 POT PRO 5000R FOR BMW M2]()
AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 2 CP9542 22.9cm² Piston Area
Applications:
- Performance Road Rear.
Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø380mm Max or 356mm Min x 32mm max or 28mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers to suit discs Ø380 x 32mm thickness:
- RHT = CP9542-2S0BG4 / LHT = CP9542-3S0BG4 - RHL = CP9542-4S0BG4 / LHL = CP9542-5S0BG4 Black Caliper Part Numbers to suit discs Ø380 x 28mm thickness:
- RHT = CP9542-6S0BG4 / LHT = CP9542-7S0BG4 - RHL = CP9542-8S0BG4 / LHL = CP9542-9S0BG4
Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.r
CP9542-2S0R12 Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9542-2S0S10
- Performance Road Rear.
Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø380mm Max or 356mm Min x 32mm max or 28mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers to suit discs Ø380 x 32mm thickness:
- RHT = CP9542-2S0BG4 / LHT = CP9542-3S0BG4 - RHL = CP9542-4S0BG4 / LHL = CP9542-5S0BG4 Black Caliper Part Numbers to suit discs Ø380 x 28mm thickness:
- RHT = CP9542-6S0BG4 / LHT = CP9542-7S0BG4 - RHL = CP9542-8S0BG4 / LHL = CP9542-9S0BG4
Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.r
CP9542-2S0R12 Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9542-2S0S10
Specifications
| Brake Pad Information | CP6600D55 |
| CALIPER TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | 27.0 x 4 |
| Piston Area - cm² | 22.9 |
| Disc Diameter - mm | 380.0 |
| Disc Thicknesses | - CP9542-2/3/4/5 = 32.0 - CP9542-6/7/8/9 = 28.0 |
| Weight (No Pads) - Kg | 3.25 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 195.0 |
| Mounting Offset - mm | - CP9542-2/3/4/5 = 36.0 - CP9542-6/7/8/9 = 34.0 |
| Mounting Hole Ø - mm | 12.1 |
| PL Dimension - mm | 55.0 |
| Bleed Screw Tightening Torque - Nm | 17 |
| CALIPER SPARES | |
| Pistons | Ø27.0mm x 4 = CP7555-106 |
| Seal Repair Kits | CP4527-CC |
| Pad Retainer and Bolt | CP9541-2/3/4/5 Caliper - CP9560-104 x 4 & CP3596-112ST x 2 CP9541-6/7/8/9 Caliper - CP9560-104 x 4 & CP3796--121ST |
| Pad Retainining Pin | CP9542-2/3/4/5 Caliper - CP7555-182 x 2 CP9542-6/7/8/9 Caliper - CP8335-116 x 2 |
| Bleed Screw Kits | CP3880-1 |
| Pad Anti-Rattle Clip | CP9542-2/3/4/5 Caliper - CP9540-107 CP9542-6/7/8/9 Caliper - CP9540-108 |
