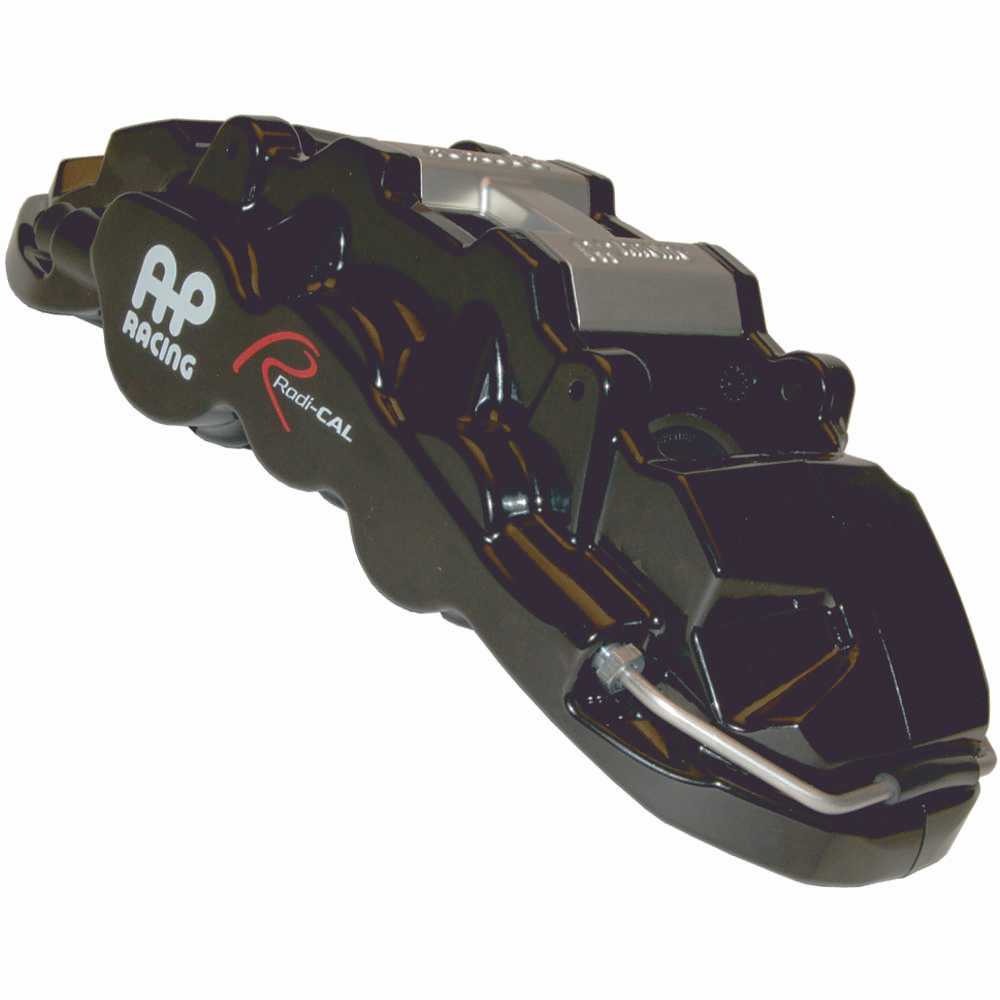

AP Racing Street Front or Rear PAIR Black 6 Piston Performance Brake Calipers World Radi-CAL 1 CP8522 50.1cm Piston Area
Applications: - Performance Road Front.
- Factory Radi-CAL™ Brake Kits.
Features:
- Benefits from a radical asymmetric design concept.
- Radial Mount, 195mm centres. -
Suits Ø410mm or 380mm x 36mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers: - RHT = CP8522-2S0BG - LHT = CP8522-3S0BG. - RHL = CP8522-4S0BG - LHL = CP8522-5S0BG
Red Caliper Part Numbers: For Red calipers add 'R2' to end of Part Number e.g. CP8522-2S0R2
Specifications
| Brake Pad Information | CP7555 |
| CALIPER TECHNICAL SPECIFICATIONS | |
| Pistons Sizes - mm | - Ø27.0 x 2 / Ø31.8 x / Ø38.1 x 2 |
| Piston Area - cm² | 50.1cm² |
| Disc Diameter - mm | Max = Ø410.0 / Min = Ø380.0 |
| Disc Thickness - mm | 36.0 |
| Weight - Kg | 4.65 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 195.0 |
| Mounting Offset - mm | 49.50 |
| Mounting Hole Ø - mm | 12.1 |
| PL dimension - mm | 70.0 |
| Bleed Screw Tightening Torque - Nm | 17Nm |
| CALIPER SPARES | |
| Pistons |
- Ø27.0 = CP7555-106 x 2 - Ø31.8 = CP8336-116 x 2 - Ø38.1 = CP8335-110 x 2 |
| Seal Repair kit | CP4527-CEJ |
| Pad Retainer Type / Part No | Pin / CP7555-116 |
| H / Piece and Bolt | CP8520-106 / CP3596-112ST x 2 |
| Bleed Screw Kit | CP3880-1 |
