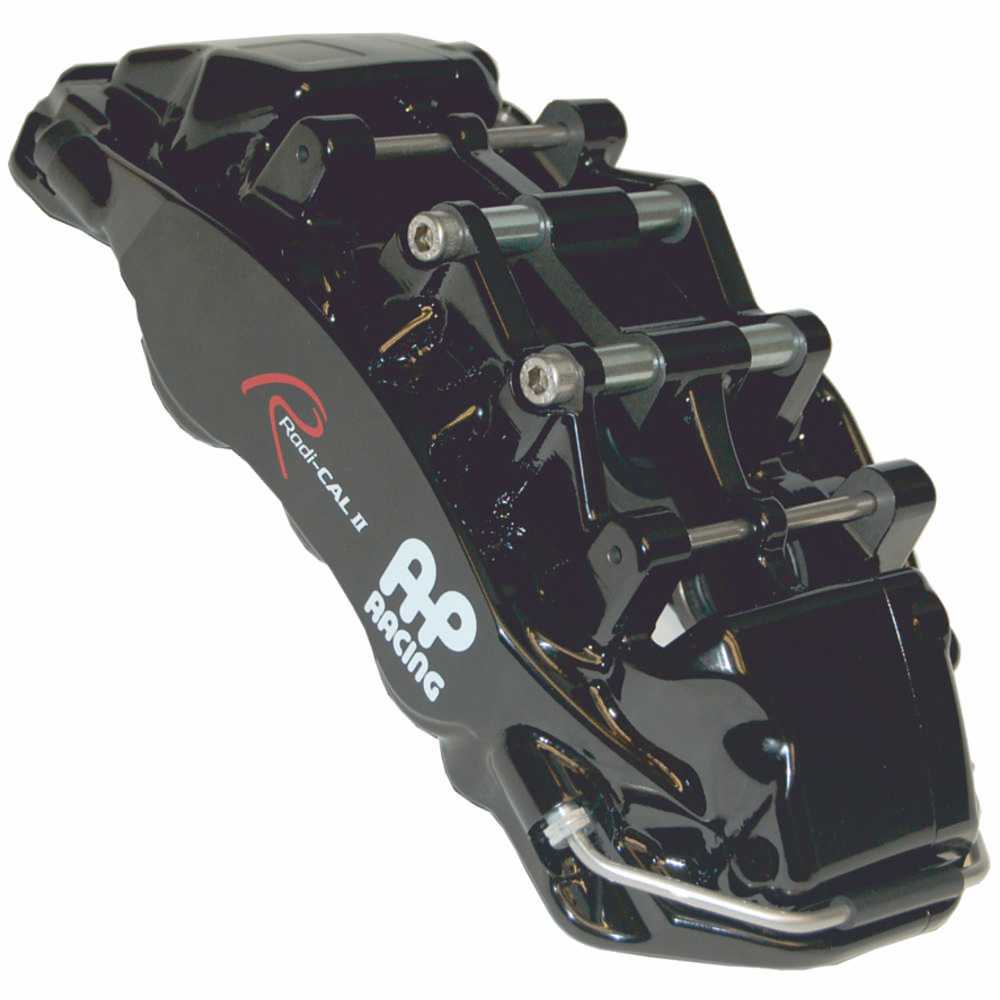

AP Racing Street Front PAIR Black 6 Piston Performance Brake Calipers World Radi-CAL 2 CP9561 58.6cm² Piston Area
Applications:
- Performance Road Front or Rear.
Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø390mm Max or 356mm Min x 36mm Max or 34mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP9561-2S0BG4 / LHT = CP9561-3S0BG4 - RHL = CP9561-4S0BG4 / LHL = CP9561-5S0BG4
Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.
CP9561-2S0R12 Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9561-2S0S10
Specifications
| Brake Pad Information | CP7555D70 |
| CALIPER TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø31.8 x 4 - Ø41.3 x 2 |
| Piston Area - cm² | 58.6 |
| Disc Diameter - mm | - Max = 390.0 |
| Disc Diameter - mm | - Max = 36.0 - Min 34.0 |
| Weight (No Pads) - Kg | 4.5 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting centres - mm | 195.0 |
| Mounting Offest - mm | 49.50 |
| Mounting Hole Ø - mm | 12.1 |
| PL Dimension - mm | 70.0 |
| Bleed Scrwe Tightening Torque - Nm | 17.0 |
| CALIPER SPARES | |
| Pistons | Ø31.8mm = CP8336-116 x 4 Ø41.3mm = CP8335-111 x 2 |
| Seal Repair Kit | CP427-EEK |
| Tube Pad Retainer and Bolt part Nos | CP9560-106 x 4 CP5555-156ST |
| Pad Retaining Pin | CP7555-116 x 2 |
| Bleed Screw Kit | CP3880-1 |
| Pad Anti Rattle Clip | CP9560-107 |
Applications:
- Performance Road Front or Rear.
Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø390mm Max or 356mm Min x 36mm Max or 34mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP9561-2S0BG4 / LHT = CP9561-3S0BG4 - RHL = CP9561-4S0BG4 / LHL = CP9561-5S0BG4
Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.
CP9561-2S0R12 Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9561-2S0S10
Specifications
| Brake Pad Information | CP7555D70 |
| CALIPER TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø31.8 x 4 - Ø41.3 x 2 |
| Piston Area - cm² | 58.6 |
| Disc Diameter - mm | - Max = 390.0 |
| Disc Diameter - mm | - Max = 36.0 - Min 34.0 |
| Weight (No Pads) - Kg | 4.5 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting centres - mm | 195.0 |
| Mounting Offest - mm | 49.50 |
| Mounting Hole Ø - mm | 12.1 |
| PL Dimension - mm | 70.0 |
| Bleed Scrwe Tightening Torque - Nm | 17.0 |
| CALIPER SPARES | |
| Pistons | Ø31.8mm = CP8336-116 x 4 Ø41.3mm = CP8335-111 x 2 |
| Seal Repair Kit | CP427-EEK |
| Tube Pad Retainer and Bolt part Nos | CP9560-106 x 4 CP5555-156ST |
| Pad Retaining Pin | CP7555-116 x 2 |
| Bleed Screw Kit | CP3880-1 |
| Pad Anti Rattle Clip | CP9560-107 |
