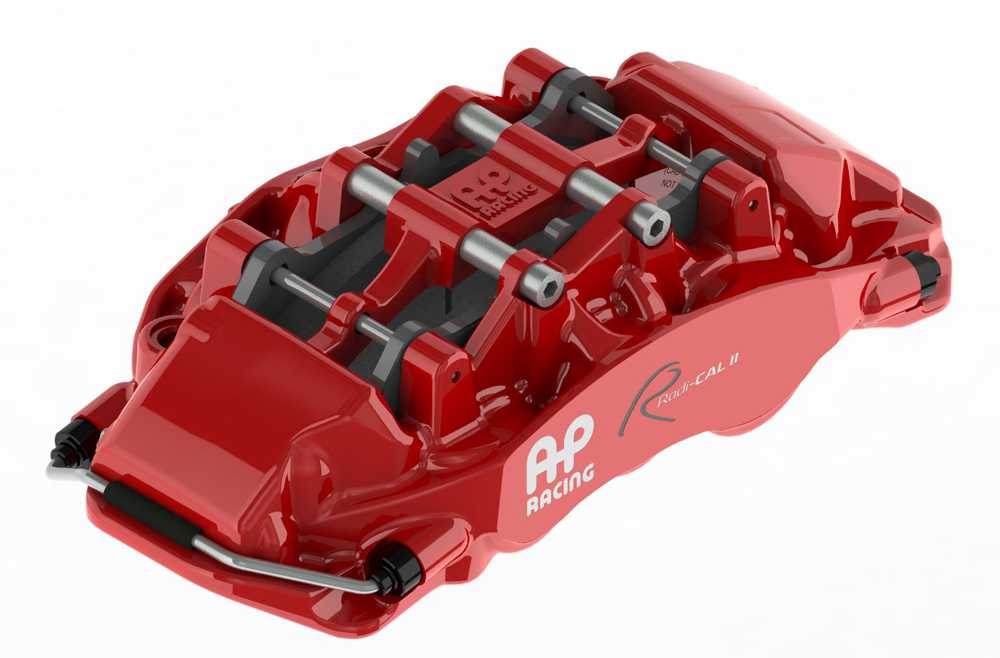

AP Racing Street Front PAIR Red 6 Piston Performance Brake Calipers World Radi-CAL 2 CP9562 50.1cm² Piston Area
Applications:
- Performance Road Front or Rear.
Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø390mm Max or 362mm Min x 36mm Max or 34mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP9562-2S0BG4 / LHT = CP9562-3S0BG4 - RHL = CP9562-4S0BG4 / LHL = CP9562-5S0BG4
Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.
CP9562-2S0R12 Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9562-2S0S10
Specifications
| Brake Pad Information | CP7555D70 |
| CALIPER TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø27.0 x 2 - Ø31.8 x 2 - Ø38.1 x 2 |
| Piston Area - cm² | 50.1 |
| Disc Diameter - mm | - Max = 390.0 - Min = 362.0 |
| Disc Thickness - mm | - Max = 36.0 - Min = 34.0 |
| Weight (No Pads) - Kg | 4.5 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 195.0 |
| Mounting Offset - mm | 49.50 |
| Mounting Hole Ø - mm | 12.1 |
| PL Dimension | 70.0 |
| Bleed Screw Tightening Torque - Nm | 17 |
| CALIPER SPARES | |
| Pistons | Ø27.0mm = CP7555-106 x 2 Ø31.8mm = CP8336-116 x 2 Ø38.1mm = CP8335-110 x 2 |
| Seal Repair Kits | CP4527-CEJ |
| Tube Pad Retainer and Bolt Part Nos | CP9560-106 x 4 & CP5555-156ST x 2 |
| Pad Retaining Pin | CP7555-116 x 2 |
| Bleed Screw Kit | CP3880-1 |
| Pad Anti - Rattle Clip | CP9560-107 |
Applications:
- Performance Road Front or Rear.
Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø390mm Max or 362mm Min x 36mm Max or 34mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP9562-2S0BG4 / LHT = CP9562-3S0BG4 - RHL = CP9562-4S0BG4 / LHL = CP9562-5S0BG4
Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.
CP9562-2S0R12 Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9562-2S0S10
Specifications
| Brake Pad Information | CP7555D70 |
| CALIPER TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø27.0 x 2 - Ø31.8 x 2 - Ø38.1 x 2 |
| Piston Area - cm² | 50.1 |
| Disc Diameter - mm | - Max = 390.0 - Min = 362.0 |
| Disc Thickness - mm | - Max = 36.0 - Min = 34.0 |
| Weight (No Pads) - Kg | 4.5 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 195.0 |
| Mounting Offset - mm | 49.50 |
| Mounting Hole Ø - mm | 12.1 |
| PL Dimension | 70.0 |
| Bleed Screw Tightening Torque - Nm | 17 |
| CALIPER SPARES | |
| Pistons | Ø27.0mm = CP7555-106 x 2 Ø31.8mm = CP8336-116 x 2 Ø38.1mm = CP8335-110 x 2 |
| Seal Repair Kits | CP4527-CEJ |
| Tube Pad Retainer and Bolt Part Nos | CP9560-106 x 4 & CP5555-156ST x 2 |
| Pad Retaining Pin | CP7555-116 x 2 |
| Bleed Screw Kit | CP3880-1 |
| Pad Anti - Rattle Clip | CP9560-107 |
IMPORTANT NOTES FOR BUYERS:
*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND
*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME
*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS
*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
