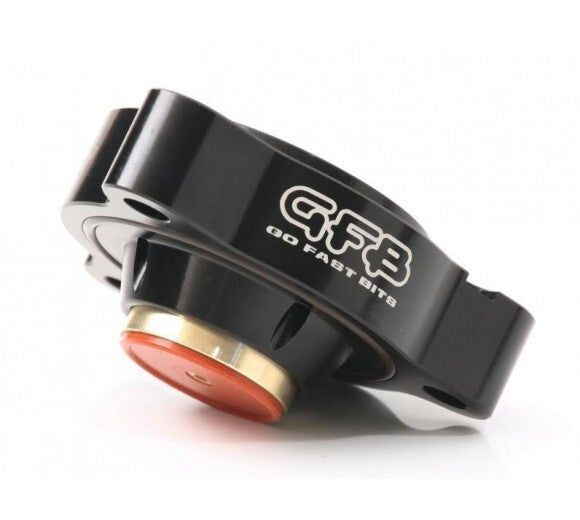

GFB DV+ Diverter valve with TMS advantage (BMW)
GFB DV+ Diverter valve with TMS advantage (BMW)
GFB
Introducing the new DV+ Suits Dodge Dart, BMW and Fiat Abarth Applications GFB’s DV+ solution couldn’t be simpler - keep what works and replace what doesn’t. Worldwide Patent and Design Patent Pending Retains the factory solenoid coil for seamless integrationReplaces plastic valve parts with metal for reliability and strength on chipped enginesDirect-fit replacement with GFB’s TMS benefitsExclusive “pilot-actuated” valve mechanism for rapid response at high boostGFB expands the DV+ range with a direct-fit solution for the weak factory diverter valve used on many European vehicles. The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it?), but the weak point however is the valve mechanism itself. So GFB’s DV+ solves this problem by replacing just the valve parts with an anodised billet aluminium housing fitted with a brass piston machined to exacting tolerances. The end result is sharper throttle response, lightning-fast valve actuation, and it will hold as much boost as you can throw at it. Read all about the DV+ story on the next page. Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive and takes much longer to install. GFB’s DV+ solution on the other hand is more responsive, less expensive, easier to install, and doesn’t cause compressor surge/turbo flutter. Oh, and it doesn’t require different springs or frequent re-builds.
Many late-model European cars use ECU controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to.
However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings.
Additionally, in both cases, the solenoid on the OE diverter is directly connected to the valve mechanism, which is not ideal because neither it nor the return spring are strong enough to open and close the valve reliably at high boost.
With problems like this, you can see why other aftermarket manufacturers assume the best solution is to replace the factory diverter entirely. Unfortunately though, whilst their replacement kits might be stronger than the factory diverter, their slower response speed and lower flow do not justify the extra cost and complexity - more of a compromise than a solution.
GFB has taken a different approach to deliver a complete solution that solves existing problems and improves performance, without compromise or a hefty price tag.
The DV+ addresses the factory valve problems with a very simple and elegant solution. Keeping the factory solenoid retains all the benefits of the stock system, and replacing the valve parts with indestructable metal components ensures strength and reliability no matter how much boost you run.
That's not all. Rather than using the solenoid to directly actuate the valve, we’ve introduced a unique “pilot-actuation” system. This means the solenoid controls the air pressure that is used to open and close the piston, so it doesn't matter how much boost you push through it, the DV+ will open and close reliably without ever exceeding the solenoid’s capability.
This feature also improves on the factory system by opening the valve progressively in response to boost pressure, so it only opens as much as required to get the job done (the factory valve simply opens and shuts, it cannot partially open if boost pressure is low), resulting in better throttle response.
IncludedFitment
2006+ BMW E92, E93, E84, E82, E88
2010+ BMW F21, F30, F35, F80, F13
2012+ BMW F30, F35, F80
2011+ BMW F30, F35, F80, F20, F06
2013+ BMW F22, F01, F02, F03, F04, F32, F82, F15, F31
2010+ BMW 114i 116i 118i N13B16 F20/F21
2013 Dodge Dart
2010+ BMW X3 x Drive
2011+ BMW 640i F06/F12/F13 N55
2011+ BMW 335i/335i xdrive E90/E91/E92/E93 N55 2010-2012 E90
2008+ BMW X6 xDrive35i E71 N55 2011-2013 E71, E72
2010+ BMW 535i F07/F10/F11 N55 2010-on F11 225kw Petrol Engine RWD Wagon 09/10-on
2009+ BMW 535i F07/F10/F11 N55 2010-on F07 225kw Petrol Engine RWD Hatchback 10/09-on
Introducing the new DV+
Suits Dodge Dart, BMW and Fiat Abarth Applications
GFB’s DV+ solution couldn’t be simpler - keep what works and replace what doesn’t.
Worldwide Patent and Design Patent Pending
Retains the factory solenoid coil for seamless integration
Replaces plastic valve parts with metal for reliability and strength on chipped engines
Direct-fit replacement with GFB’s TMS benefits
Exclusive “pilot-actuated” valve mechanism for rapid response at high boost
GFB expands the DV+ range with a direct-fit solution for the weak factory diverter valve used on many European vehicles.
The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it?), but the weak point however is the valve mechanism itself. So GFB’s DV+ solves this problem by replacing just the valve parts with an anodised billet aluminium housing fitted with a brass piston machined to exacting tolerances.
The end result is sharper throttle response, lightning-fast valve actuation, and it will hold as much boost as you can throw at it. Read all about the DV+ story on the next page.
Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive and takes much longer to install.
GFB’s DV+ solution on the other hand is more responsive, less expensive, easier to install, and doesn’t cause compressor surge/turbo flutter. Oh, and it doesn’t require different springs or frequent re-builds.
Many late-model European cars use ECU controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to.
However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings.
Additionally, in both cases, the solenoid on the OE diverter is directly connected to the valve mechanism, which is not ideal because neither it nor the return spring are strong enough to open and close the valve reliably at high boost.
With problems like this, you can see why other aftermarket manufacturers assume the best solution is to replace the factory diverter entirely. Unfortunately though, whilst their replacement kits might be stronger than the factory diverter, their slower response speed and lower flow do not justify the extra cost and complexity - more of a compromise than a solution.
GFB has taken a different approach to deliver a complete solution that solves existing problems and improves performance, without compromise or a hefty price tag.
The DV+ addresses the factory valve problems with a very simple and elegant solution. Keeping the factory solenoid retains all the benefits of the stock system, and replacing the valve parts with indestructable metal components ensures strength and reliability no matter how much boost you run.
That's not all. Rather than using the solenoid to directly actuate the valve, we’ve introduced a unique “pilot-actuation” system. This means the solenoid controls the air pressure that is used to open and close the piston, so it doesn't matter how much boost you push through it, the DV+ will open and close reliably without ever exceeding the solenoid’s capability.
This feature also improves on the factory system by opening the valve progressively in response to boost pressure, so it only opens as much as required to get the job done (the factory valve simply opens and shuts, it cannot partially open if boost pressure is low), resulting in better throttle response.
Included
Fitment
- 2006+ BMW E92, E93, E84, E82, E88
- 2010+ BMW F21, F30, F35, F80, F13
- 2012+ BMW F30, F35, F80
- 2011+ BMW F30, F35, F80, F20, F06
- 2013+ BMW F22, F01, F02, F03, F04, F32, F82, F15, F31
- 2010+ BMW 114i 116i 118i N13B16 F20/F21
- 2013 Dodge Dart
- 2010+ BMW X3 x Drive
- 2011+ BMW 640i F06/F12/F13 N55
- 2011+ BMW 335i/335i xdrive E90/E91/E92/E93 N55 2010-2012 E90
- 2008+ BMW X6 xDrive35i E71 N55 2011-2013 E71, E72
- 2010+ BMW 535i F07/F10/F11 N55 2010-on F11 225kw Petrol Engine RWD Wagon 09/10-on
- 2009+ BMW 535i F07/F10/F11 N55 2010-on F07 225kw Petrol Engine RWD Hatchback 10/09-on
