TOMEI EXPREME EQUAL LENGTH EXHAUST MANIFOLD for TOYOTA 86 FA20 -412002

Code: 412002

Add Your Review

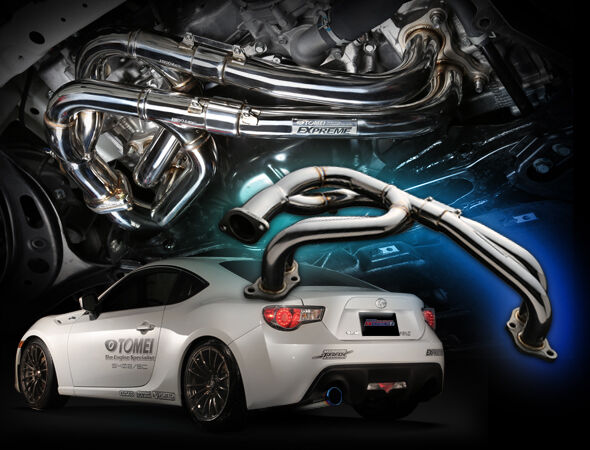

TOMEI EXPREME EQUAL LENGTH EXHAUST MANIFOLD for TOYOTA 86 FA20 -412002

$1,308.53

In Stock

Quantity

Category: Exhaust, TOMEI, Toyota

Description
Reviews

TOMEI EQUAL LENGTH EXHAUST MANIFOLD FR-S / BRZ

Equal length, 4-2-1
design for peak power

The FA20 boxer engine inside the Scion FR-S/Subaru BRZ can be said to be the successor to the EJ engine. At Tomei Powered, through our extensive testing, we've produced numerous EJ engine and exhaust parts. By applying our knowledge and experience of EJ engines to the ZN6/ZC6, we conducted even further tests to produce 2 new exhaust manifolds with different characteristics. Using this in conjunction with our new joint pipe, released at the same time, can yield even better results.

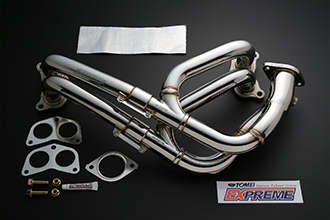

KIT CONTENTS

EXHAUST MANIFOLD?(1)

GASKET (ENGINE SIDE)?(2)

GASKET (JOINT PIPE SIDE)?(1)

FLANGE BOLT?(2)

FLANGE NUT?(2)

THERMAL INSULATION SHEET?(1)

BOLT SMOOTH PASTE?(1)

Includes all gaskets, nuts, bolts etc. required for installation. Thermal insulation sheet also included to protect surrounding components.

APPLICATION :

SCION FR-S / SUBARU BRZ

PART NUMBER :

412002

Designed for Competition Use only

SPECIFICATIONS COMPARISON VS STOCK

?	Optimized pipe lengths and angles.
?	Improved exhaust efficiency through catless design
?	Designed to minimize heat transfer to the oil pan.

	?Joint pipe sold separately

TOMEI EQUAL LENGTH

TOMEI UNEQUAL LENGTH

STOCK

	MATERIAL	LAYOUT	PIPE DIAMETER ???			PIPE THICKNESS (mm)	FLANGE THICKNESS (mm)		WEIGHT (kg / lbs)
	MATERIAL	LAYOUT	Port exit - 1st juncture	Port exit - 1st juncture	2nd juncture - joint pipe	PIPE THICKNESS (mm)	Front	Rear	WEIGHT (kg / lbs)
STOCK	-	4-2-1	42.7	45.0	51.2	1.5	9.0	10.0	9.2 / 20.28
TOMEI EQUAL LENGTH	SUS304	4-2-1	42.7	45.0	60.5	1.5	12.5	12.5	6.45 / 14.22
TOMEI UNEQUAL LENGTH	SUS304	4-1	42.7	-	60.5	1.5	12.5	12.5	6.85 / 15.10

OTHER FEATURES

Slider adjusts for the lost-wax cast collector, heat expansion and gasket thickness.

Complete with o2 sensor boss.

Lightweight, highly rigid stepless flange.

Other exhaust related parts released together for the FR-S/BRZ

UNEQUAL LENGTH EXHAUST MANIFOLD

JOINT PIPE
