TOMEI EXPREME JOINT PIPE FOR TOYOTA 86 FA20 ZN6 431104
TOMEI EXPREME JOINT PIPE FOR TOYOTA 86 FA20 ZN6 431104
TOMEI
JOINT PIPE FR-S / BRZ
Larger diameter for improved exhaust efficiency and precision clearance design
The stock joint pipe is not only narrow, it also has flattened sections which severely limits the performance gains from fitting a high efficiency manifold. However, our new pipe has its sections welded together to maintain a wide ?60.5 diameter throughout with additional weld beads on the inside for rigidity.

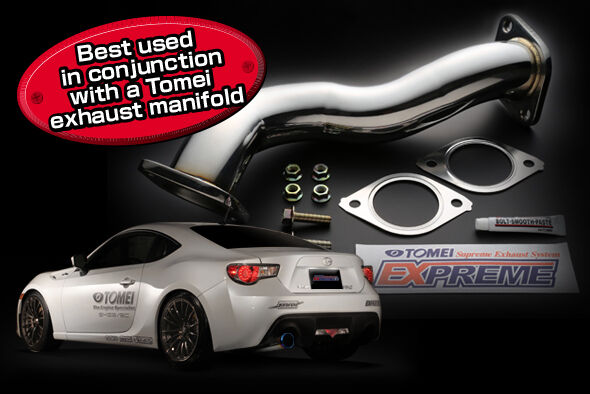

KIT CONTENTS
JOINT PIPE?(1)
GASKET?(2)
FLANGE BOLT?(1)
STUD BOLT?(2)
FLANGE NUT?(4)
BOLT SMOOTH PASTE?(1)
Includes all gaskets, nuts, bolts etc. required for installation.
APPLICATION :
SCION FR-S / SUBARU BRZ
PART NUMBER :
431104
Designed for Competition Use only
TEST RESULTS WHEN FITTED WITH A TOMEI EXHAUST MANIFOLD
SPECIFICATIONS COMPARISON VS STOCK
EXHAUST MANIFOLD SIDE
MUFFLER SIDE
MATERIAL
PIPE DIAMETER???
PIPETHICKNESS (mm)
FLANGETHICKNESS(mm)
WEIGHT(kg / lbs)
STOCK
-
54.0
1.5
10.0
2.0 / 4.4
TOMEI
SUS304
60.5
1.5
11.0
1.5 / 3.3
OTHER FEATURES
Even with the stock setup, handling around the joint pipe pass-through is challenging given the limited clearance. However, our dedicated engineers have achieved precision clearance even with the wider pipe.
