POWER SPIRIT

GT3582 GT35 Turbo Turbocharger T3 A/R.63 + FMIC INTERCOOLER + 76MM 3" Piping Kit

Code: KPK-UUK-3582-76MM-INC-KIT-X
Add Your Review
GT3582 GT35 Turbo Turbocharger T3 A/R.63 + FMIC INTERCOOLER + 76MM 3" Piping Kit
$989.00 $839.00
In Stock
Category: HOT SALE PRODUCTS, POWER SPIRIT, Turbocharger

GT3582 GT35 Turbo Turbocharger T3 A/R.63 + FMIC INTERCOOLER + 76MM 3" Piping Kit

This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

3"  76mm / 3INCH  Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.
600x300x76mm Intercooler fits Universal engine & vehicle.

Application
Perfect for all 4/6 cylinder and 3.0L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil

Specification
Turbo
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet () Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63
Compressor Trim: 57
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7
Bearing: Wet Float
Warranty: 2 Year
Internal Wastegate: No

Intercooler Turbo Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
-100% brand new  Never been tried or installed.
-100% quality assurance tested
-Made out of high quality of 6061 aluminum Manual polishing finished

Intercooler

Core Dimension: 600 X 300 X 76 MM

Inlet / outlet size:    3" inch

Thickness: 3" (76mm)

Color: White

Intercoolers are designed with a Bar & Palte core which has the highest thermodynamic dissipative process.
These universal intercoolers come with a 3" inlet and outlet.

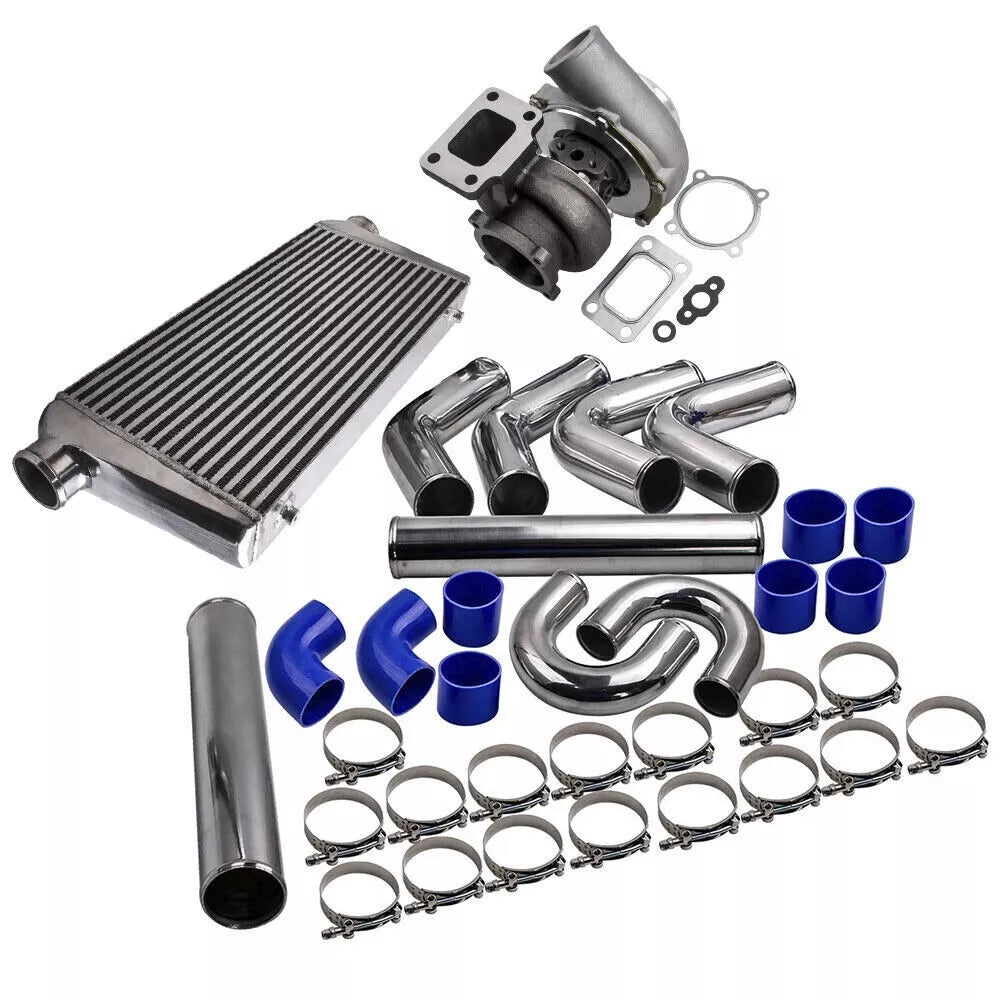

Package Including

1x Turbo and gaskets

1x 600x300x76mm Intercooler

2x 90 Degree Aluminum Pipe 3"

2x Straight aluminum pipe 3"

2x 45 Degree Aluminum Pipe 3"

2x U Aluminum Pipe 3"

8 x high tempature silicone hose: (6x straight, 2 x 90degree) Blue

16x T-bolt Clamps
