TOMEI EXPREME Ti TITANIUM MUFFLER exhaust SYSTEM for TOYOTA 86/ SUBARU BRZ/FR-S TYPE-80
TOMEI EXPREME Ti TITANIUM MUFFLER exhaust SYSTEM for TOYOTA 86/ SUBARU BRZ/FR-S TYPE-80
tomei
TOMEI EXPREME Ti TITANIUM MUFFLER for 86/BRZ/FR-S TYPE-80
Dramatic Weight Reduction & Performance Gains Throughout The Entire Powerband For The 86/BRZ/FRS.
Our high-quality, high-performance muffler that was specifically created for the performance minded end user.We had developed our own special material to achieve the quality and performance needed. In terms of functionality, the internal structure of the silencer and the layout were designed as straight as possible. With 3 muffler designs available, to suit various tuning needs. To cover all 86/BRZ/FRS tuning trends. This is the clear distinguishing factor of our EXPREME Ti series mufflers.
PRODUCT INFO
APPLICATION
TYPE
P/N
NOTES
86BRZFRS
TYPE-60S
440019
※FOR OFF ROAD USE ONLY.
TYPE-60R
440020
TYPE-80
440021
FEATURE / SPEC

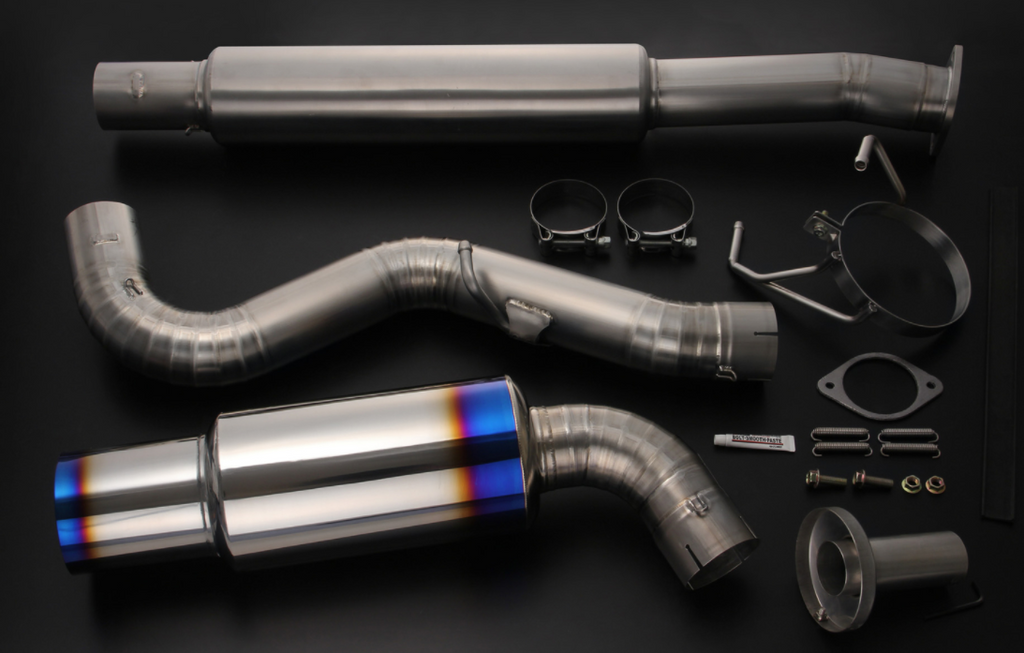

KIT CONTENTS
TYPE-60S
TYPE-60R
TYPE-80
MAIN PIPE A (1)
MAIN PIPE B (1)
MAIN SILENCER(1)
TAIL PIPE (1)
CLAMP BAND (3)
SPRING (4)
SOUND REDUCER (1)
FLANGE NUT M8 (1)
FLANGE BOLT M8 (1)
BUTTON BOLT (1)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
ALLEN KEY (1)
MAIN PIPE A (1)
MAIN PIPE B (1)
(1)
CLAMP BAND (2)
SPRING (4)
SOUND REDUCER (1)
BUTTON BOLT (1)
ALLEN KEY (1)
MAIN PIPE A (1)
MAIN PIPE B (1)
MAIN SILENCER (1)
CLAMP BAND (2)
SPRING (4)
SOUND REDUCER (1)
FLANGE NUT M8 (3)
FLANGE BOLT M8 L=35 (2)
FLANGE BOLT M8 L=25 (1)
GASKET (1)
BUTTON BOLT (1)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
ALLEN KEY (1)
SPEC
Our design gives top priority to weight reduction and exhaust flow efficiency. Not too thick and not too thin. To maximize performance gains without sacrificing torque.
TYPE-60S
TYPE-60R
TYPE-80
STD
MATERIAL
TITANIUM
TITANIUM
TITANIUM
–
MAIN PIPE DIAMETER
Φ60.5
Φ60.5
Φ80.0
Φ54.0
MAIN PIPE THICKNESS
1mm
1mm
1mm
1.2ｍｍ
SILENCER DIAMETER
CENTER Φ115REAR Φ115
Φ115
CENTER Φ115REAR Φ152
CENTER Φ100REAR 350x 190 OVAL
SILENCER THICKNESS
1mm
1mm
1mm
1.2mm
EXIT DIAMETER
Φ105
Φ105
Φ115
Φ90/75×2
EXIT THICKNESS
1mm
1mm
1mm
1.2mm
FLANGE THICKNESS
2.0mm
2.0mm
8.0mm(Flat Flange)
2.0mm
EXHAUST TEST LEVELS
Without Inner Silencer:95dbWith Inner Silencer:92db
Without Inner Silencer:102dbWith Inner Silencer:98db
Without Inner Silencer:104dbWith Inner Silencer:97db
WEIGHT
6.4kg
4.6kg
7.3kg
17.4kg
11.0kg DROP!
12.8kg DROP!
10.1kg DROP!
Specifications
SKU
440021
Brand
TOMEI
Shipping Weight
11.7500kg
Shipping Width
1.180m
Shipping Height
0.360m
Shipping Length
0.270m
#TOYOTA #SUBARU #86 #BRZ #TOMEI #EXHAUST #999AUTOSHOP #999AUTOMOTIVE #TITANIUM #EXPREME #JDM
